POSITAL

POSITAL is a manufacturer of sensors for motion control and safety assurance systems. The company’s products, which include rotary encoders, inclinometers and linear position sensors, are used in a wide range of settings, from manufacturing to mining, agriculture to energy

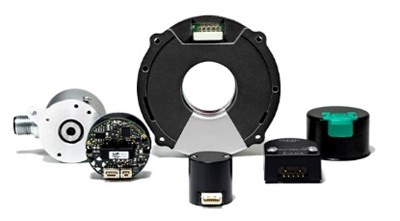

Kit Encoders

POSITAL kit encoders offer smart, maintenance-free and cost-efficient solutions for the most challenging tasks in real time motion feedback. Fusion of sensing technologies results in unique designs with uninterruptable, battery-free multiturn function, powered by a Wiegand pulse with every rotation. The gear-free, compact and economically optimized concept is ideal for integration into servo, stepper or BLDC motors.

Multiturn Kit-Encoders: On Axis

• From 22mm Diameter

• No Battery – No Gear

• Robust & Easy to Install

• –40C to 105 C

Downloadable Documents

Posital – Multiturn Kit Encoders

Multiturn Kit-Encoder: Hollow Shaft

• Up to 50mm Inner Diameter

• No Battery – No Gear

• Robust & Easy to Install

Downloadable Documents

Posital – Kit Encoder White Paper

Posital – Hollow Shaft White Paper

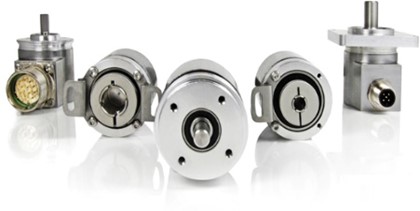

Incremental Rotary Encoders

Incremental rotary encoders generate an output signal each time the shaft rotates a certain angle. The number of signals (pulses) per turn, also called PPR, defines the resolution of the device. The internal components of an incremental encoder are much simpler than the ones of an absolute encoder. This fits the need of many applications for simple, cost effective solutions while still providing accurate positioning.

Compact Incremental Encoders

• 36mm – 58mm Diameter Housing
• Solid or Hollow Shaft
• Connector or Cable
• Highly Versatile

Downloadable Documents

Posital – Position & Motion Sensors

Posital – Incremental Rotary Encoders

The Industry Classics

• Cube Encoder
• Square Flanges
• 40mm – 50mm Clamping Flanges

Downloadable Documents

Through Hollow Shaft

• 58mm to, 77mm, 100mm Housing
• Shaft from 9.52mm up to 44.5mm (3/8″ up to 1.75″)

Downloadable Documents

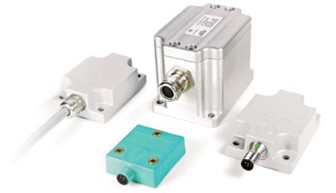

Inclinometers

Inclinometers, also called tilt sensors, are designed to measure the angle of an object with respect to the force of gravity. These tilt or level meters determine the angle orientation in space with gravity as reference and output these values via the appropriate electrical interface. Inclinometers are easy to integrate to an application because there is no need for mechanical linkages other than the installation itself – a real advantage for design engineers.

Horizontal Mounting

• Dual Axis Output

• Ideal for Leveling Tasks

• Often Used on Chassis of Mobile Machines or Other Platforms

Downloadable Documents

Vertical Mounting

• Single or Dual Axis Output

• Monitoring Angles of Excavator Booms, Firetruck Ladders or Solar Panels

Downloadable Documents

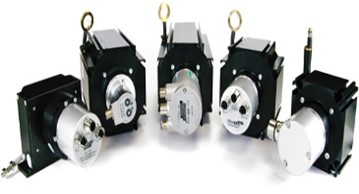

Linear Sensors

Draw wire sensors, also called cable pull sensors, are designed to perform linear position measurement using an encoder and thus providing high accuracy sensing. Connected to a draw wire, the encoder delivers a signal proportional to the cable that is pulled out. While pinion and racks require perfect alignment and soldering, a draw wire sensor offers an easy-to-install system with a large variety of interface options.

Extruded Metal Housings

• Robust
• Flexible Mounting
• Acceleration up to 7g
• Suitable for Demanding Environments

Downloadable Documents

Plastic Housings

• Highly Economical
• Small Footprint
• High Accuracy
• OEM’s Favorite

Downloadable Documents

Machine Metal Housings

• Economical
• Compact
• Suitable for Industrial Environments

Downloadable Documents

Posital – Draw-Wire White Paper

Linear Encoders and Feedback Devices require a drive/control to process the signal.
